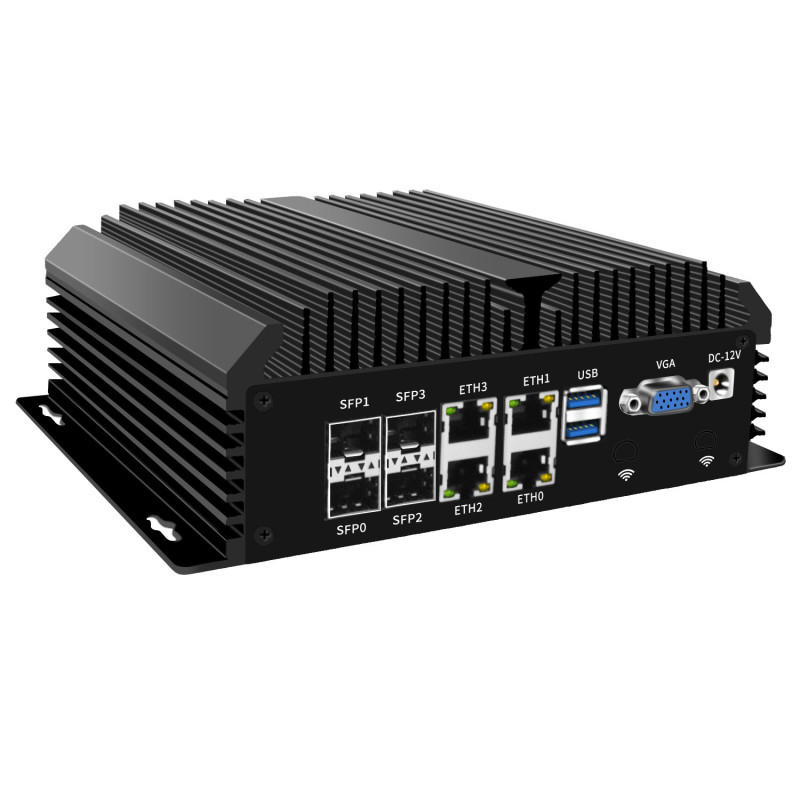

BKHD C3758 10GbE Network Server Appliance – 8 Core Intel Atom C3758 + 8GB RAM

The BKHD C3758 is a versatile x86 network appliance designed for firewall, routing, VPN, network monitoring, edge-computing and industrial gateway applications.

This configuration is powered by an Intel Atom C3758 processor with eight CPU cores, 16 MB cache and a frequency of up to 2.20 GHz. It includes 8 GB of DDR4 memory, providing a capable platform for open-source and commercial network operating systems.

Four SFP+ interfaces provide high-speed 10 Gigabit connectivity for fibre links, switches, servers and storage networks. Four additional RJ45 Ethernet interfaces support copper network connections for WAN, LAN and segmented network deployments.

The appliance also provides six configurable RS232/RS485 serial interfaces and GPIO connectivity, making it suitable for industrial equipment, telemetry, automation and edge gateway deployments.

Its standard x86 architecture allows it to run compatible firewall, router, VPN and server software, including pfSense, OPNsense, MikroTik RouterOS CHR, OpenWrt x86, VyOS and Linux-based applications.

Key features

• Intel Atom C3758 eight-core processor
• Processor frequency up to 2.20 GHz
• 16 MB processor cache
• 8 GB DDR4 memory
• Four 10 Gigabit SFP+ network interfaces
• Four RJ45 Ethernet interfaces
• Six configurable RS232/RS485 serial interfaces
• GPIO connectivity
• x86-64 architecture
• Hardware-assisted virtualisation support
• Hardware-accelerated AES encryption support
• Suitable for firewall, VPN and routing applications
• Suitable for industrial and edge-computing deployments
• Optional cellular connectivity support, depending on installed hardware
• Compact metal enclosure

Technical specifications

Brand: BKHD
Product type: Network security and edge-computing appliance
Architecture: x86-64

Processor: Intel Atom C3758
CPU cores: 8
CPU threads: 8
Maximum frequency: Up to 2.20 GHz
Cache: 16 MB
Processor TDP: 25 W
Virtualisation: Intel VT-x and VT-d support
Encryption acceleration: Intel AES New Instructions

Installed memory: 8 GB DDR4
Storage: [enter installed SSD capacity and type]

Network interfaces

• 4 × 10 Gigabit SFP+ interfaces
• 4 × RJ45 Ethernet interfaces

SFP and SFP+ optical or copper transceiver modules are not included unless specifically stated.

Industrial interfaces

• 6 × configurable RS232/RS485 serial interfaces
• GPIO interface

Supported software

The appliance uses standard x86-compatible hardware and may be suitable for:

• pfSense
• OPNsense
• MikroTik RouterOS CHR
• OpenWrt x86
• VyOS
• Sophos Firewall
• Linux
• Virtualisation and container platforms

Software compatibility may depend on network interface drivers, storage configuration and the version of the selected operating system.

Typical applications

• Internet firewall appliance
• Multi-WAN router
• Site-to-site VPN gateway
• Remote-access VPN server
• 10 Gigabit network gateway
• Network monitoring appliance
• Intrusion detection or prevention system
• SD-WAN appliance
• Industrial communication gateway
• Serial-to-IP gateway
• IoT and telemetry gateway
• Edge-computing server
• Lightweight virtualisation host

Package contents

• BKHD C3758 network appliance
• 8 GB DDR4 memory
• Power adapter
• 128 GB SSD

Important information

This product is supplied as a configurable x86 network appliance. Firewall, router and VPN software licences are not included unless specifically stated.

Actual firewall, VPN and routing throughput depends on the operating system, enabled security features, packet size, encryption method, network configuration and installed storage.

SFP and SFP+ modules, cellular modem, SIM card, Wi-Fi module and antennas are not included unless listed separately.
