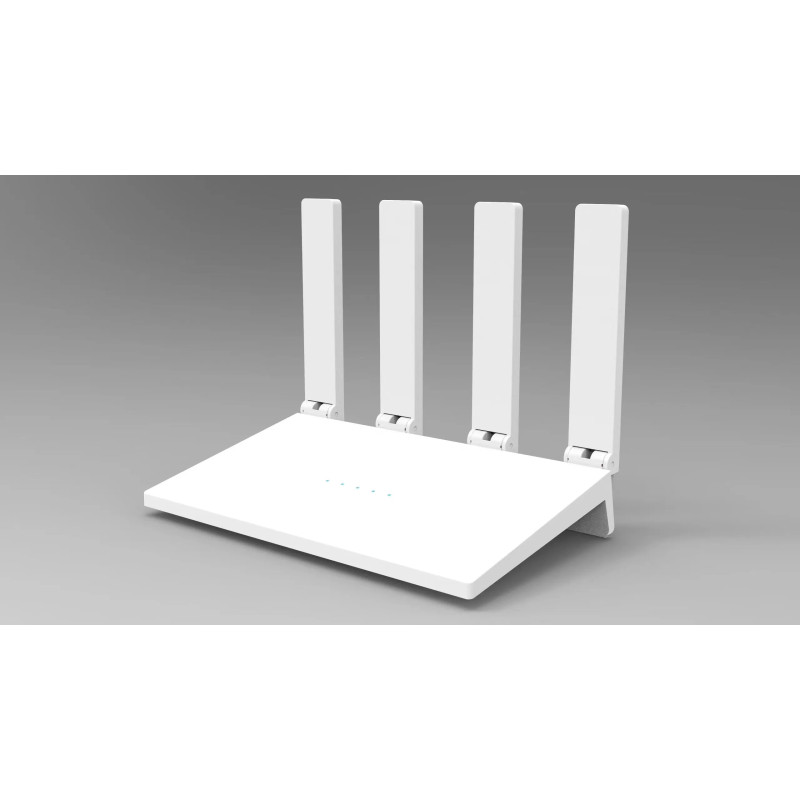

AW-TC300S Dual-WAN 4G LTE WI-FI Router 866 Mbps on 5G and 300 Mbps on 2.4G.

The AW-TC300S is a versatile dual-WAN router designed for robust connectivity, offering both fibre and 4G LTE support. This combination ensures seamless internet access with automatic failover between wired and wireless connections, ideal for maintaining uptime in homes, small businesses, and remote locations.

Key Features

• Dual-WAN Support: Connects via high-speed fibre and 4G LTE (Cat 4) with automatic failover, ensuring continuous internet access.
• 4G LTE Compatibility: Supports LTE-FDD and TD-LTE networks with up to 150 Mbps download and 50 Mbps upload speeds.
• Flexible WiFi Performance: Operates on 2.4GHz, 5.1GHz, and 5.8GHz bands, delivering up to 866 Mbps on 5G and 300 Mbps on 2.4G.
• Compact Port Configuration: 1 WAN + 2 LAN RJ45 Gigabit ports (10/100/1000 Mbps) for reliable wired connectivity.
• Secure Wireless Network: WPA/WPA2 encryption, MAC filtering, and DoS protection provide advanced network security.
• SIM Card Slot: 2FF SIM support for easy 4G LTE connection setup.
• TR-069 Management Support: Facilitates remote management and configuration via ACS (Auto Configuration Server).
• Powerful Indicators: Status LEDs for network activity, WAN, LAN, WiFi, and 4G connectivity.

Specifications

• CPU: 1 GHz MIPS
• Memory: 16MB Flash / 128MB DDR3 RAM
• Antennas: External 5dBi antennas (2T2R) for 2.4G, 5G WiFi, and LTE
• Operating Environment: -5°C to 55°C with 20%-90% working humidity
• Power Supply: 12V / 1A DC input

Advanced Networking Features

• VPN Client Support: PPTP and L2TP VPN configurations for secure remote access
• IPv6 Ready: Supports relay, static IP, and dynamic IP modes
• Parental Controls: Manage device access times using MAC address filtering
• Guest Network: Separate guest access for secure WiFi sharing
• Firewall & Port Management: Includes DMZ, port mapping, and DoS prevention

The AW-TC300S is the perfect solution for environments requiring reliable internet access with failover capabilities. Whether used as a primary router with fibre or as a backup with LTE, this router ensures constant connectivity with advanced security features.
